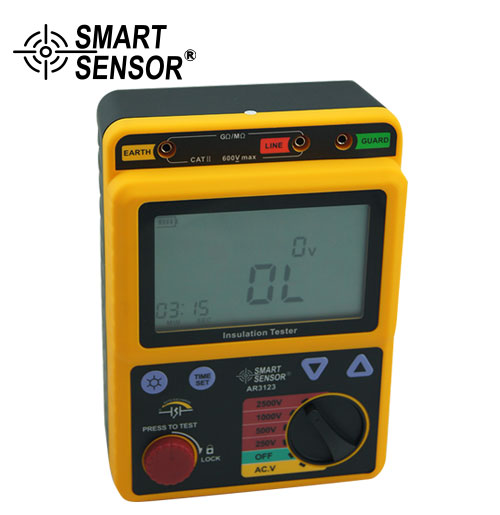

AR3123 High Voltage Insulation Tester
BRAND:SMART SENSOR
NO:AR3123

Detail

FEATURES

High voltage insulation testers are suitable for non-destructive measurement of insulation resistance in electrical systems, machines, transformers and cables. These testers are useful for preventive maintenance in the generation, transmission and distribution of electrical energy.



SPECIFICATIONS



Rated voltage

250V / 500V / 1000V / 2500V

Open Circuit

Voltage

DC 250V +30%, -0% ~

DC 2500V +20%, -0%

Insulation Resistance

Testing Range

0.0MΩ~99.9GΩ

Short Circuit Current

1.3 mA Approx

Insulation Resistance

Accuracy

±5% rdg ±3% rdg

Voltage Testing Range

DC : ±30 ~ ±600V ; AC : 30 ~ 600V (50/60Hz)

Voltage Resolution

1V

Accuracy

±2%rdg ±3rdg

Sampling Rate

0.5 ~ 10 times / sec

Operation Condition

0°C ~ 40°C, ≤ 85% RH

Storage Condition

-20°C ~ 60°C, ≤90% RH

Over Load Protection

Auto Discharge

Battery Indication

Alarm

High Voltage Warning Symbol & Buzzer Alarm

External power supply

DC adapter 12V / 1A





PACKING INFORMATION



Power

8*1.5V LR14 Battery

Product Net Weight

1027g

Product Size

153*213*95mm

Packing

Gift box

Standard Quantity Per Carton

6

Standard Carton Size

45*32*55cm

Standard Carton Gross Weight

16.23kg
