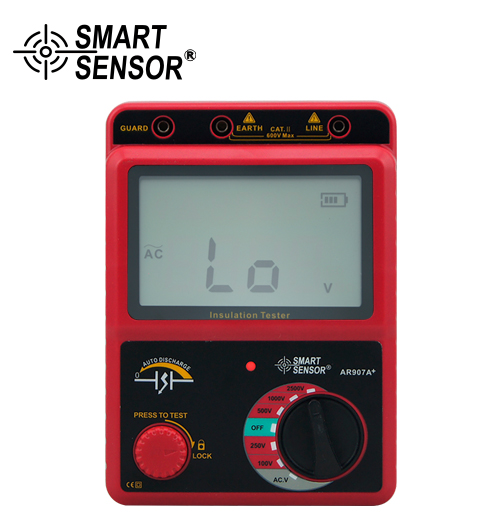

AR907A+ High Voltage Insulation Tester
BRAND:SMART SENSOR
NO:AR907A+

Detail

FEATURES

High voltage insulation testers are suitable for non-destructive measurement of insulation resistance in electrical systems, machines, transformers and cables. These testers are useful for preventive maintenance in the generation, transmission and distribution of electrical energy.



SPECIFICATIONS



Rated voltage

50V / 100V / 250V / 500V / 1000V

Open Circuit Voltage

DC 100V +10%, -0% ~

DC 2500V +20%, -0%

Insulation Resistance

Testing Range

0.0MΩ~49.9GΩ

Short Circuit Current

1.3 mA Approx

Insulation Resistance

Accuracy

±8% rdg (100K~10GΩ)

±10% rdg (10GΩ~50GΩ)

Voltage Measuring Range

30 ~ 600V (50/60Hz)

Voltage Resolution

1V

Accuracy

±2%rdg ±3rdg

Sampling Rate

0.5 ~ 10 times / sec

Operation Condition

0°C ~ 40°C, < 85% RH

Storage Condition

-20°C ~ 60°C, < 90% RH

Over Load Protection



PACKING INFORMATION



Power

6*1.5AA Battery

Product Net Weight

547.44g

Product Size

125.4*174.6*69mm

Packing

Gift box

Standard Quantity Per Carton

12

Standard Carton Size

52*33.5*47cm

Standard Carton Gross Weight

17.20KG
