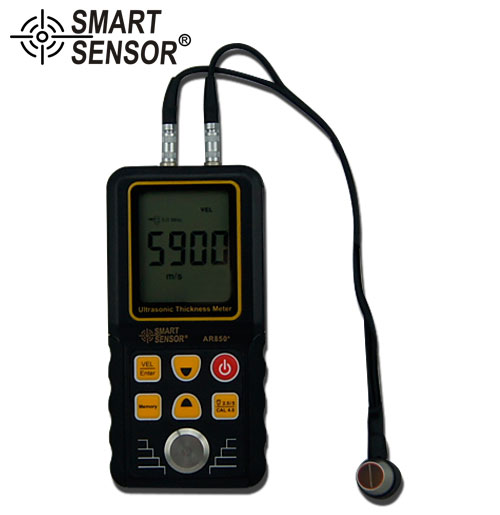

SmartSensor AR850+ Ultrasonic Thickness Gauge
BRAND:SMART SENSOR
NO:AR850+

Detail
  • Product Name:Ultrasonic Thickness Gauge              Type:AR850+



  • Features

Ultrasonic thickness gauges use sound wave to measure wall thickness. Different types of materials have different inherent acoustic velocities. ( sound travels at different speeds through different materials ).For example the acoustic velocity of steel is 0.2330 inches/microsecond and that of aluminum is 0.2500 inches/microsecond. The unit can be set to any acoustic velocity depending on the material being measured. The instruction book includes a table of acoustic velocities for common materials. Even if you don't know the acoustic velocity or your material,you can measure it with the sample of material of known thickness to start with.

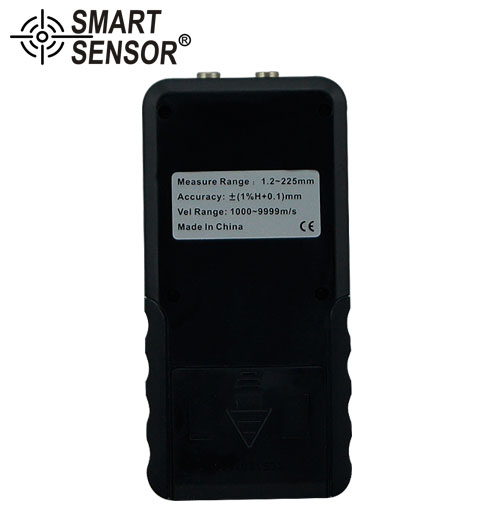

SPECIFICATION

 Measuring Range

 1.2-225.0mm(steel)

 Accuracy

 ±(1%±0.1)mm

 Sound Velocity Range

 1-9999m/s

 Pipe Measuring Lower Limit

 φ20*3mm(steel)

 Working Frequency

 5MHz

 Working Temperature Range

 0-45℃

 Automatic Zero Adjustment

 √

 Data Store Function

 √

 Low Battery Indication

 √

 Auto Power Shut Off

 √

PACKING INFORMATION


 Product Size/Net weight

 70*145.5*28mm/210g

 Packing

 Gift box
