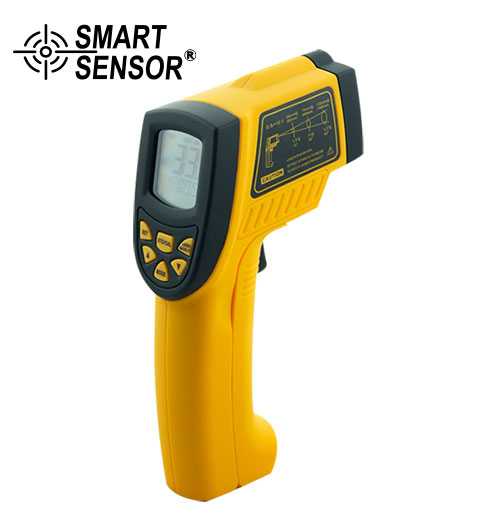

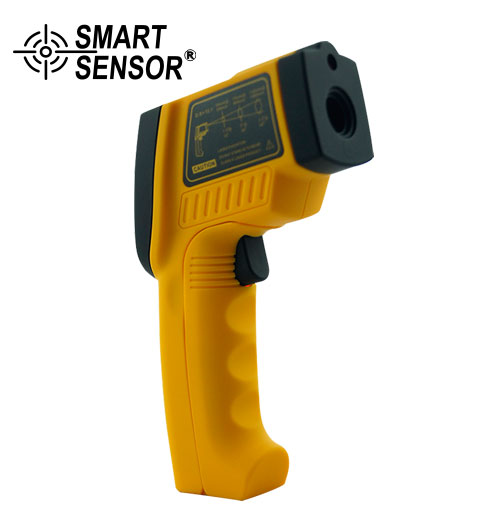

AR862A Infrared Thermometer
BRAND:SMART SENSOR
NO:AR862A+

Detail

FEATURES

The most basic design consists of a lens to focus the infrared (IR) energy on to a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation. Infrared Thermometers allow users to measure temperature in applications where conventional sensors cannot be employed. Specifically, in cases dealing with moving objects ( i.e., rollers, moving machinery, or a conveyor belt), or where non-contact measurements are required because of contamination or hazardous reasons (such as high voltage), where distances are too great, or where the temperatures to be measured are too high for thermocouples or other contact sensors.



SPECIFICATIONS



Measuring Range

-50~900(-58~1652)

Accuracy

±1.5%or1.5

Distance Spot Ratio

12:1

Emissivity

0.10~1.00 adjustable

Resolution

0.1℃or 0.1℉(<1000℃)

Wavelength & Response

Time

(8-14)um&500ms

Repeatability

±1%or±1

/Selection

√

Data Hold Function

Laser Target Pointer Selection

Backlight Display Selection

Auto Power Off



PACKING INFORMATION



Power

9V battery

Product Net Weight

658g

Product Size

175*100*49mm

Packing Style

Gift box

Standard Quantity Per Carton

20PCS

Standard Carton Size

45*32*55cm

Standard Carton Gross Weight

14.28KG
